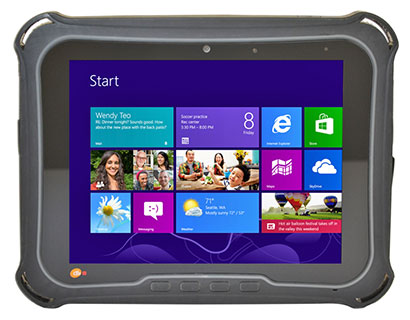

DLI 8

Handy, lightweight Bay Trail-powered mobile tablet computer with capacitive touch and an innovative 5-in-1 payment snap-on module
(by Conrad H. Blickenstorfer)

Lehigh Acres, Florida based DLI was founded in the early 1990s as a manufacturer and reseller of wireless data collection devices. The company carries mobile computers, rugged ultra-mobile tablets, handhelds, scanners and vehicle mounted computers. The DLI 8 shown here was introduced in November 2014 as a compact ruggedized tablet solution with capacitive touch and the ability to run either Windows or Android.

Though DLI already seemed to have a mobile tablet for just about any application, the DLI 8 does address the demand for a roughly iPad mini-sized thin tablet that doesn't weigh much, yet is still considerably tougher than consumer tablets. The DLI 8 meets those requirements with a 9.1 x 7.1 inch footprint, a slender (for a professional product) 0.7 inch profile, and a low (again, for a professional product) weight of just over two pounds. The display measures 8 inches diagonally, framed by a ruggedness-oriented design with distinct protruding corner guards.

As for display specs, customers get standard 4:3 aspect ratio 1024 x 768 pixel XGA. XGA began looking obsolete a few years ago, but then the original iPad stayed with that aspect ratio and resolution, and Apple continues to use 4:3 in its tablets to this day. Another advantage of XGA is that there is plenty of legacy POS and other vertical market software with this format, so no rewriting is required.

Note that the DLI 8 uses projected capacitive touch with its effortless tapping, panning, zooming and pinching. Procap on a small screen works best with Android which is available for the device, as are both full and embedded versions of Windows 7 and 8.1. Using legacy Windows on it is a bit frustrating unless the tablet is used in a dock with a mouse for navigation.

The DLI 8 isn't just a standard tablet computer; it benefits from DLI's many years of experience in putting durable tablet devices to work. Of particular interest here is the optional 5-in-1 module that attaches to the back of the tablet and can provide:

  • Barcode scanning with a 1D/2D imager
  • RFID for NFC and contactless payments
  • Magstripe reading
  • Smartcard reading with an EMV ISO/IEC 7816 contact reader
  • Keypad for debit card code entries

For communication there's 802.11a/b/g/n Cisco CCX4 certified WiFi, Bluetooth 4.0, u-blox 7 GPS, and various mobile broadband modules.

Processing power is provided by a quad-core Intel Bay Trail N2930 running at 1.86GHz. Note that Intel is branding this chip with the Celeron name although it's based on the "Silvermont" processor architecture, the first true architectural update to Atom since its introduction in 2008. The N2930 includes the same advanced GPU architecture as in Intel's Ivy Bridge Core processors.

Storage can be a 64GB of mSATA Solid State Disk, and DLI offers 4GB of DDR3L onboard RAM. On the OS side.

The impact-resistant housing provides IP54 sealing, and the requisite shock (4-fot drop) and vibration resistance for operation in vehicles. The operating temperature range is a wide 14 to 122 degrees Fahrenheit.

While DLI targets the rugged DLI 8 mobile tablet computer at applications in retail and hospitality where its optional 5-in-1 payment module comes in especially handy, we can see numerous applications in other fields that benefit from a compact tablet that is considerably tougher than consumer hardware, but without a lot of extra size and weight.

Specifications: DLI 8
Added/changed Added 11/2014
Form-factor Rugged mobile tablet
OS Windows 8.1 32bit/64bit, Windows 7 32bit/64bit, Windows Embedded 7, Windows Embedded 8, Android 4.4.4 KitKat
Processor Quad-core Intel Bay Trail N2930
CPU Speed 1.86GHz
Chipset Intel SoC
Standard/Max RAM 4GB DDR3L 1066MHz onboard
Disk/drive 64GB mSATA SSD
Card slots None external
Display type Indoor/outdoor readable TFT, 400 NIT LED backlight
Display size/res 8.0", 1024 x 768 pixels
Digitizer Projected capacitive touch
Keyboard/scale Onscreen, optional external
Sealing IP54
Temperature 14° to 122°F (-10° to 50°C)
Shock Operating 30G, (11ms); Non Operating 40G (11ms), Crash 50G (11ms)
Vibration 5-500Hz 1G PTP
EMI/EMC FCC Class B, CE
Housing ABS+PC polymer with rubber molding
Size (WxHxD) 9.05 x 7.1 x 0.7 inches (230 x 180 x 18 mm)
Weight 2.04 lbs. (925 grams) w/ battery
Power Removable rechargeable 4,040mAh lithium ion battery ("6 hrs.")
Cameras Front: 2.0mp, rear: 5mp with flash
Interface 2 x USB 2.0, VGA via cradle, audio
Wireless Intel 802.11a/b/g/n WiFi (Cisco CCX4), Bluetooth 4.0, optional u-blox 7 GPS, various WWAN radios (Verizon, AT&T, T-Mobile); optional 5-in-1 module (MSR, RFID, SmartCard, debit pin pad, 1D/2D scanner)
List price Inquire
Webpage DLI 8
Brochure DLI 8 spec sheet
