With Wi-Fi 7, Bluetooth 5.4, GNSS, satellite communication support, and both 4G LTE and 5G mobile broadband, the VORTEX is built for uninterrupted connectivity — whether in-vehicle or across distributed IoT and cloud infrastructures. This ensures reliable real-time data exchange and enables a wide range of operational efficiencies and advanced functionality. Optional integrations with technologies from industry leaders — including Advanced Driver Assistance Systems (ADAS), Terminal Operating Systems (TOS), and others — further extend the platform's capabilities.

RuggON VORTEX: design and concept

The RuggON VORTEX platform — built around the concept of a fully rugged 7-inch Windows vehicle-mount computer — has its roots nearly a decade back. Originally introduced by Ubiqconn as the MT7000, it was designed as a rugged in-vehicle terminal for fleet management, asset tracking, and ELD (Electronic Logging Device) compliance. The MT7000 was offered with either Microsoft Windows or an early version of Android, both running on its Intel "Bay Trail" Atom E2815 processor.

While exact sales figures for the Windows and Android versions of the original MT7000 are unknown to us, it's clear in retrospect that the Intel processor was better suited for running Windows than Android. As a result, RuggON eventually split the MT7000 platform into two distinct lines.

The Windows-based MT7000, powered by the capable Atom E2815, remained in the lineup largely unchanged and is still listed as a current product on the RuggON website.

On the Android side, the Intel Bay Trail processor proved to be an imperfect fit. RuggON responded by progressively upgrading the platform — first with an ARM Cortex-A7 based chip in the MT7010, then with the widely adopted Qualcomm Snapdragon SD660 in the MT7030 (also known as VIKING), and most recently with the Qualcomm 6490-based MT7050, marketed as the VIKING II.

So why didn't RuggON follow a similar upgrade path on the Windows side with progressively more powerful Intel processors? While we can't say for certain, it's likely due to a combination of factors: a) the Bay Trail chip continued to handle the required workloads adequately, and b) the original MT7000 hardware design may not have been suitable for newer Intel processors with significantly higher thermal demands.

To fully leverage modern high-performance Intel processing technology in a compact vehicle-mount form factor, RuggON needed a new platform — one capable of handling the significantly higher thermal design power (TDP) of Intel Core processors without relying on mechanical cooling. It also had to provide broader connectivity options, both state-of-the-art and legacy, beyond what the original MT7000 could support.

Enter the VORTEX, also known as Model VX-311. At first glance, it appears nearly identical to the MT7000 and its Android-based successors — same size, same color scheme, same five function buttons, and the familiar control layout on the right. But a closer look reveals that the VORTEX is a completely new and distinct design. While it shares the same 8.7 x 6.0-inch footprint as the VIKING II, the VORTEX is thicker and nearly a pound heavier. That added bulk comes from the substantial integrated metal heat finning, which enables fanless operation even with a powerful Intel Core processor.

I/O placement is critical in vehicle-mounted systems. In some installations, downward-facing ports are ideal; in others, rear-facing ports work better. The VORTEX accommodates both scenarios thanks to a thoughtfully designed modular I/O block that can be configured in either orientation. This flexibility makes the system easily adaptable to a wide range of mounting setups and vehicle layouts.

Below is a view of the RuggON VORTEX from the front and all four sides. While it may resemble a tablet from the front, it's clear upon closer inspection that the VORTEX is a heavy-duty, industrial-grade computer — one that brings the full power of Microsoft Windows, along with its vast software ecosystem and global IT support, into demanding vehicular environments.

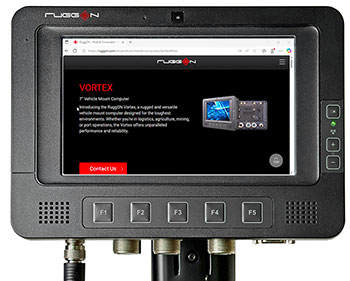

The front of the VORTEX features a 7.0-inch display. Some may wonder why RuggON didn't use the 8-inch, 1280 x 800-pixel panel found in its LUNA 3 rugged tablet for this new design. Instead, the VORTEX uses a 1024 x 600-pixel LCD that is slightly recessed into the housing for added protection. That said, a flush-mount display would have been preferable, as the recessed bezel can occasionally interfere with touch operation.

Below the display are five programmable function buttons. These sealed, tactile-click buttons offer positive feedback and can be configured either through the BIOS or via a key mapping utility. The function keys are flanked by dual 2-watt speakers, while volume up/down and power/sleep controls are located to the right of the display.

The left and right sides of the VORTEX are protected by covers secured with two small screws each. Beneath the left-side cover are a MicroSD card slot, a Micro SIM card slot (with a secondary eSIM also available), a USB Type-C port with DisplayPort support, and a system reset button.

On the right side, the cover conceals a 7 watt-hour internal battery. This battery is not intended to power the VORTEX during normal operation; instead, it serves as backup power in the event of vehicle power instability or voltage drops. It also enables a graceful shutdown if external power is lost or disconnected.

What truly sets the VORTEX apart from most vehicle-mount systems is its flexible I/O. Not only can the I/O module be configured for either downward- or rear-facing ports, but it can also remain mounted in an optional accessory adapter bracket. This allows the VORTEX to be quickly removed without the need to unscrew or disconnect individual I/O cables.

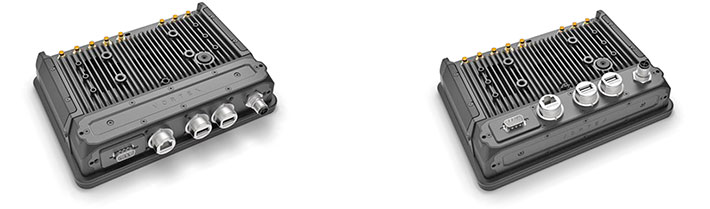

Further yet, the VORTEX can be equipped with (currently) a choice of three different I/O modules. These are:

IO-A : Secure type connector:
— RS-232 with power supported x 1
— Gigabit Ethernet x 1

IO-B : Generic type connector:
— RS-232 with power supported x 1
— RS-232 (RX, TX)/422/485 x 1
— Gigabit Ethernet x 1
— HDMI x 1
— DI x 2, DO x 2, CAN bus x 1
— Optional : Dual CAN FD/ SAE J1939 x 1/ Video input x 2

IO-C: M12 type connector:
— RS-232 (RX, TX)/ RS-485 x 1
— RS-232 (RX, TX)/ RS-485 x 1
— Gigabit Ethernet x 2
— DI x 3, DO x 1, CAN bus x 1
— Optional : Dual CAN FD/ SAE J1939 x 1

On the operating system side, the VORTEX typically ships with Windows 11 IoT Enterprise, either in the GAC (General Availability Channel) or LTSC (Long-Term Servicing Channel) version. The GAC edition receives all standard feature and security updates as they are released, ensuring the system stays current. In contrast, the LTSC version offers extended support periods with fewer updates, ideal for deployments where stability and minimal change are priorities.

Design and construction

The die-cast aluminum alloy housing of the RuggON VORTEX is impressive in every respect. It has a clean, professional look, a reassuring heft when handled, and a build that feels virtually indestructible. The main structural component is made from ADC-12 die-cast aluminum alloy, a material precisely formulated with silicon, copper, magnesium, iron, manganese, and zinc to deliver optimal strength, machinability, and environmental resilience. ADC-12 supports precision manufacturing, withstands high operating temperatures, provides excellent thermal conductivity, resists corrosion, and offers strong EMI and RFI shielding.

The thick, heavily finned rear section not only functions as a passive heatsink but also serves as a rugged structural base. It includes standard 35 x 75 mm VESA mounting holes, as well as an additional screw-mount pattern likely intended for accessory attachments. Also notable are cutouts supporting up to eight external antenna connections: two for LAN, four for broadband, and one each for GNSS and Satcom.

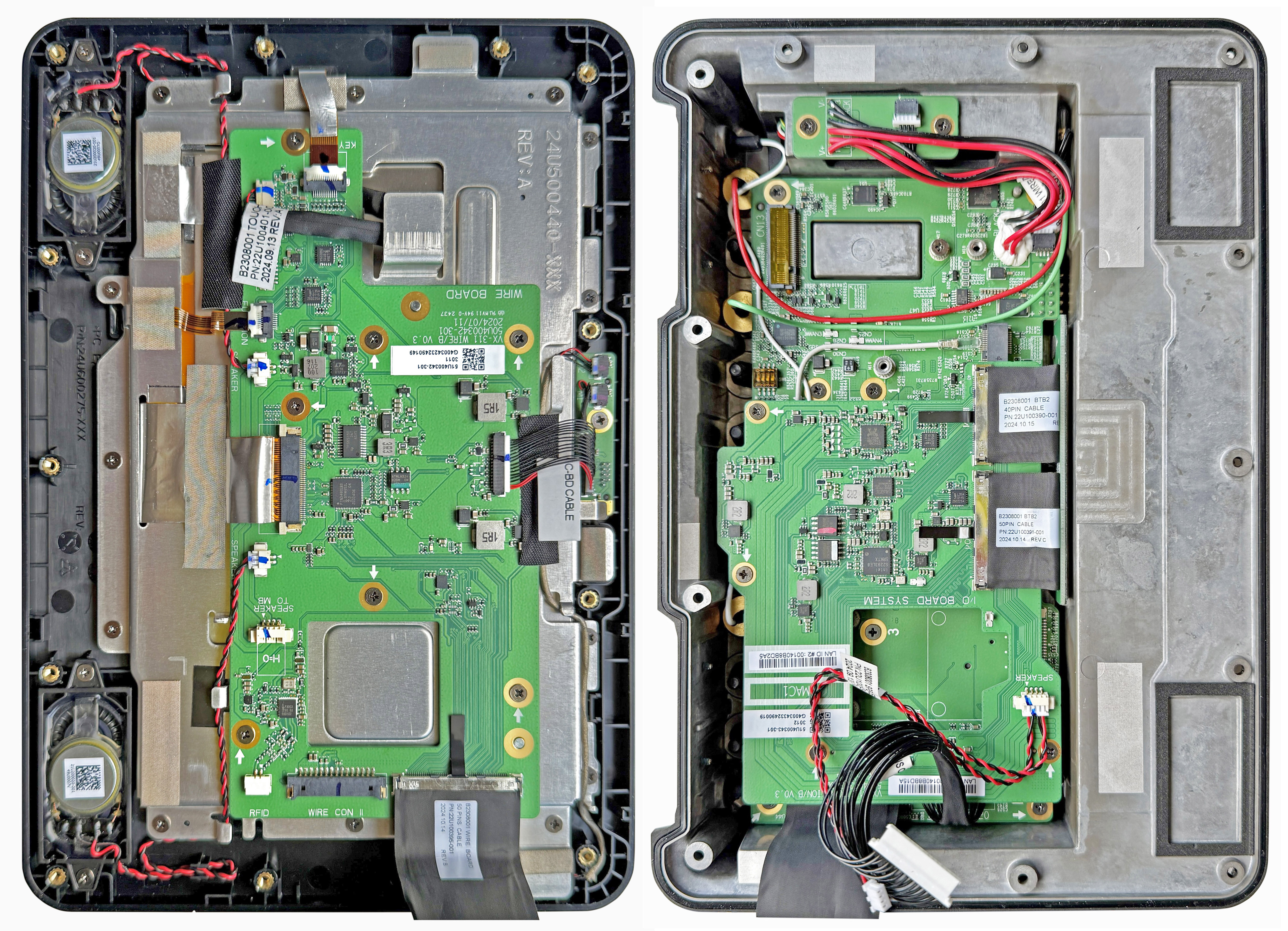

The VORTEX has no external access doors for internal servicing, so gaining deeper access requires opening the device. The housing is composed of a robust, box-like die-cast aluminum rear and a durable ABS plastic front, secured together with a dozen rear-facing screws. A replaceable black pressure seal, seated in a groove on the aluminum back, provides environmental sealing between the two halves.

The front section houses the LCD display and associated electronics, all mounted on a sturdy internal steel subframe for added protection. The heavier rear section contains the main motherboard, I/O ports, and expansion connectors. A few internal cables link the front and rear halves, so care is needed during both disassembly and reassembly to avoid damage.

The VORTEX's rectangular motherboard is highly integrated and efficiently miniaturized, with an exceptionally clean and organized layout. Numbered white arrows clearly indicate all screw positions securing the board, and many components and modules are labeled with barcodes for easy identification. Expansion areas are well-marked, and a mini PCIe socket is visible for additional functionality. Many internal connectors are reinforced with black tape to prevent loosening from vibration — an important detail in vehicle-mounted systems. The VORTEX can be configured with up to 16GB of DDR5 SDRAM and up to 256GB of M.2 2242 SSD storage.

Except for the side-mounted USB-C port and the two external card slots, all of the VORTEX's I/O resides on one of three available modular I/O blocks, which are securely mounted to the rear of the housing and can be oriented to face either downward or backward.

One standout feature of the VORTEX is that, despite its robust performance and the use of a 15/55-watt TDP Intel Core processor, it maintains a completely fanless design.

While fans are effective at cooling and maximizing performance, they come with trade-offs: noise, airflow that may disturb sensitive environments, mechanical wear, and vulnerability to clogging in dusty conditions — particularly problematic in rugged deployments.

Fanless designs avoid these issues by using passive cooling methods such as heat pipes and integrated heatsinks. In the VORTEX, the heavy-duty metal housing doubles as a heat sink, passively dissipating heat from the processor and supporting components to the exterior surface.

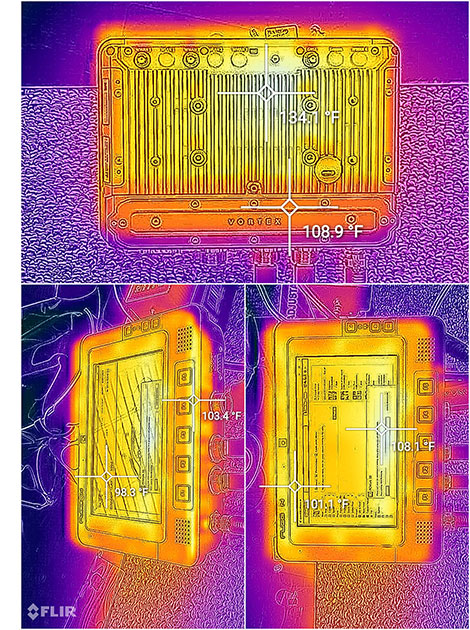

That means the unit's exterior will warm up during operation. Using a thermal imaging camera, we recorded surface temperatures reaching up to 108°F on the front during benchmarking, and over 130°F on the hottest areas of the rear housing. If heat buildup could be a concern in your deployment environment, RuggON offers an optional fan accessory for active cooling support.

Display

A high-quality display is essential for any computer — and even more so for a vehicle-mount system, where operators may work in dimly lit warehouses, bright outdoor environments, or in rapidly changing lighting conditions. Such demanding use cases require a display that not only offers excellent visibility across lighting extremes but also withstands the physical stresses inherent to vehicle-mounted operation.

How did RuggON address the display challenge? By equipping the VORTEX with a 7.0-inch industrial-grade LCD featuring 1024 x 600 resolution, which translates to 170 pixels per inch.

While that's not particularly sharp compared to modern consumer tablets or smartphones — some of which exceed 500 ppi — it's more than adequate for typical in-vehicle applications.

RuggON has extensive experience in designing displays for vehicle-mounted systems, and its devices are generally known for excellent daylight readability. That makes the VORTEX's 500-nit luminance rating seem somewhat modest, especially considering it draws from vehicle power and doesn't need to conserve battery life. The brightness is sufficient for use inside enclosed vehicles, but a higher-luminance option would be welcome for outdoor or high-glare environments.

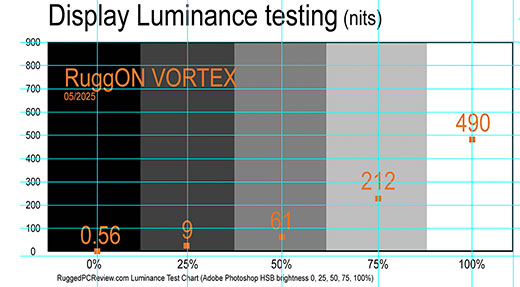

The unit includes fast, responsive auto-dimming, and brightness can also be programmed for manual adjustment via hardware buttons. Despite its glossy surface, the display benefits from an effective anti-reflective coating.

We were unable to identify the exact LCD panel used and thus couldn't access full specifications. Visual inspection reveals wide horizontal and vertical viewing angles, although vertical shifts in contrast and color are noticeable. In fixed-mount vehicle systems, this is less of an issue than it would be in mobile devices like laptops or tablets, since the viewing angle remains consistent. As long as the panel is properly positioned, these shifts should not affect usability.

Overall, the compact VORTEX display performs well and should meet the needs of most applications. That said, the front housing design appears to leave room for future models with larger displays — an 8-inch or even 10-inch version could likely be developed to interface directly with the existing VORTEX backend.

Performance: 13th gen "Raptor Lake" hybrid processor

Perhaps the most significant upgrade in the VORTEX is on the processor side. While the original MT7000 relied on low-end Intel Atom chips, the new VORTEX delivers vastly higher performance with an Intel "Raptor Lake" 13th-generation Core i5-1335UE processor. This chip features two performance cores and eight efficiency cores, with turbo speeds reaching up to 4.5GHz.

For less demanding applications, the VORTEX is also available with a dual-core Intel "Alder Lake-N" Atom x7211E processor. While considerably more modest than the i5-1335UE, the x7211E represents a major leap forward — it's a full decade newer and significantly more capable than the original Atom used in the Windows-based MT7000.

RuggON VORTEX CPUs: Performance or Economy

	VORTEX CPU options	Core i5	Atom
	Model	Core i5-1335UE	Atom x7211E
	Code name	Raptor Lake	Alder Lake-N
	Introduced	Q1/2023	Q1/2023
	Cores/Threads	2 power/8 economy/12 threads	2/2 threads
	Base Clock Speed	1.60 GHz	2.00 GHz
	Turbo Speed	4.50 GHz	3.20 GHz
	Thermal Design Power (TDP)	15/55 watts	6 watts
	Cache	12MB Smart Cache	6MB Cache
	Integrated graphics	Intel Iris XE eligible	Intel UHD Graphics
	GPU Execution Units	80	16
	Graphics max speed	1.25 GHz	1.00 GHz
	Memory type	Up to DDR4 3200 MT/s Up to DDR5 5200 MT/s Up to LPDDR4x 4267 MT/s Up to LPDDR5 6400 MT/s	Up to DDR4 3200 MT/s Up to DDR5 4800 MT/s Up to LPDDR5 4800 MT/s
	Intel vPro	Yes	No
	Relative Cost	8.00 X	1.00 X

When it comes to computing power, more is almost always better — especially as an increasing number of in-vehicle applications demand the kind of performance the Raptor Lake CPU delivers. Notably, this processor offers significantly higher performance than what's typically available in vehicle-mount computers.

Let's take a closer look at the architecture. For many years, Intel's high-end mobile Core processors featured two, four, or even eight identical cores. That meant all tasks — whether demanding or routine — were handled by the same high-performance cores, even when their full power wasn't necessary.

To improve efficiency, Intel introduced a hybrid architecture with its 12th-generation "Alder Lake" Core processors. These chips combined high-performance "P-cores" (performance cores) with smaller, more power-efficient "E-cores" (efficiency cores) in a single processor. It's a design long used in smartphones, where different types of cores handle different workloads.

In Alder Lake and the subsequent 13th-gen "Raptor Lake" lineup, P-cores manage heavy-duty processing tasks, while E-cores — based on streamlined Atom-like technology — handle background and routine operations. An integrated "Thread Director" dynamically allocates tasks to the appropriate cores, optimizing both performance and power consumption.

Technology moves quickly in the world of processor design, and Intel's 13th-generation "Raptor Lake" architecture is a prime example. It builds on the hybrid design introduced with Alder Lake, offering more cores, expanded L2 cache, higher clock speeds, support for faster DDR5 memory, and a range of refinements and optimizations. Think of Raptor Lake as Intel's hybrid architecture 2.0 — more evolved, more efficient, and more powerful. And that's the platform powering the high-end version of the RuggON VORTEX.

For deployments with more modest performance requirements, RuggON also offers the VORTEX with an Intel Atom x7211E processor. This 12th-generation "Alder Lake-N" chip includes turbo boost but omits advanced features like multi-threading and various integrated Intel technologies found in higher-end Core processors.

The table above right provides a side-by-side comparison of key specifications for the two processor options available in the VORTEX.

Many mobile computer manufacturers offer multiple processor options with only marginal differences. That's not the case with the VORTEX. Here, the differences are substantial: ten cores versus two, high-performance versus basic graphics, and significant disparities in support for memory and connectivity standards. That said, the Atom-based configuration runs much cooler and is highly power-efficient. This is a clear instance where the intended application will strongly determine which processor is the right fit.

The integrated graphics capabilities further highlight this performance gap. The Core i5-1335UE features Intel Iris Xe Graphics with 80 execution units, while the Atom x7211E relies on basic Intel UHD Graphics with only 16 execution units — a major difference in visual processing power.

To illustrate where the Core i5-powered version of the VORTEX fits within the broader computing performance landscape — particularly among rugged and vehicle-mount systems with small displays — we ran our full suite of standard benchmarks on our evaluation unit.

These included PassMark PerformanceTest versions 6.1 and 9.0, which assess CPU, 2D and 3D graphics, memory, and disk performance, then compute individual and overall scores. We also used the CrystalMark benchmark suite, which provides subsystem scores with a single-core performance focus, as well as PCMark 10, 3DMark, and Geekbench.

For comparison, we included benchmark results from RuggON's larger VULCAN X, the 8-inch LUNA 3 rugged tablet, and similarly sized rugged tablets from Durabook, Juniper Systems, and Winmate, all of which are designed for vehicle mounting or compact field deployment.

The numbers are as follows:

RuggON VORTEX performance in perspective

Manufacturer	RuggON	RuggON	RuggON	Durabook	Juniper	Winmate
Model	VORTEX	VULCAN X	LUNA 3	R8	Mesa 4	FM07
Type	Vehicle-mount	Vehicle-mount	Rugged tablet	Rugged tablet	Rugged tablet	Vehicle-mount
Year tested	2025	2021	2022	2022	2024	2019
Intel processor	Intel Core	Intel Core	Intel Core	Intel Core	Intel Processor	Intel Celeron
Intel processor	i5-1335UE	i5-8365UE	i5-1145G7E	i5-1230U	N200	N3350
Cores/threads	2/8/12	4/0/8	4/0/8	2/4/8	4/0/4	0/2/2
Display size	7.0 inches	10.4 inches	8.0 inches	8.0 inches	7.0 inches	7.0 inches
Thermal Design Power (TDP)	15/55 watts	15 watts	15 watts	9/29 watts	6 watts	6 watts
PassMark 6.1	5,220	2,471	4,832	6,228	3,123	1,113
PassMark 9.0	5,198	2,897	NA	2,703	2,174	1,117
CrystalMark	364,733	244,905	331,372	274,377	157,347	94,536
PC Mark 10 Overall	5,059	3,580	3,980	3,341	1,912	NA
- PC Mark 10 Essentials	9,579	7,378	8,511	7,578	4,552	NA
- PC Mark 10 Productivity	7,191	5,943	5,931	5,198	2,949	NA
- PC Mark 10 Digital Content	5,104	2,841	3,390	2,571	1,465	NA
- PC Mark 10 Drive	544	439	NA	1,216	791	NA
3D Mark (Time Spy)	1,183	410	881	784	315	NA
GeekBench 5 Single Core	1,473	1,018	1,138	1,259	664	NA
GeekBench 5 Multi Core	5,213	2,904	3,713	3,525	1,283	NA

The devices listed in the table above are all designed to deliver full Windows functionality and computing power on the road and in vehicle environments. Most feature compact displays — seven or eight inches — except for the 10.4-inch VULCAN X, which we included to show how an earlier RuggON vehicle-mount system compares in performance to the latest generation.

Interestingly, each of the six devices is powered by a different processor. Represented are four distinct generations of Intel Core processors — 8th, 11th, 12th, and 13th — as well as both hybrid and conventional CPU designs. The Intel branding varies as well: Core, Celeron, and the generic "Intel Processor" label, which in that instance refers to an Atom-based chip.

The truth is, choosing the right processor for a new device is no easy task for system designers. High-end processors deliver more performance — but they can cost up to ten times more than low-end chips that, in many cases, may handle the job just as well. Each new processor generation brings incremental improvements in performance, features, and efficiency, further complicating the decision. That's why the performance figures above should be viewed as general guidelines — helpful for understanding the class of performance a device delivers, but not the only factor. More isn't always better; it's about selecting the right tool for the specific task and application.

That said, in the world of rugged, industrial-grade Windows-based vehicle-mount computers, we're not aware of any current competitor that matches the processing performance of the RuggON VORTEX. Most competing products are either built on outdated platforms or operate at significantly lower performance levels.

What does "AI-enhanced" mean?

It's worth noting that the benchmark table above focuses solely on traditional computing performance. But today, much of the conversation revolves around AI — Artificial Intelligence. That includes the large language models behind tools like ChatGPT, but also a growing range of AI-powered applications and utilities designed for real-time data analysis, pattern recognition, automation, and more.

In its January 2025 press release announcing the VORTEX, RuggON highlighted this shift, stating that the device "integrates AI-driven capabilities for real-time data processing, predictive analytics, and enhanced automation."

The VORTEX is equipped with an advanced 13th-generation Intel processor — but not one that includes an NPU (Neural Processing Unit), which is purpose-built for accelerating AI workloads. So does that exclude the VORTEX from participating in AI-driven processing? Not at all.

While NPUs are optimized for AI tasks, modern CPUs and integrated GPUs are fully capable of handling many AI workloads. They may not process those tasks as efficiently or at the same speed as dedicated neural engines, but they are more than capable of supporting a wide range of AI functions, particularly in edge computing and industrial applications.

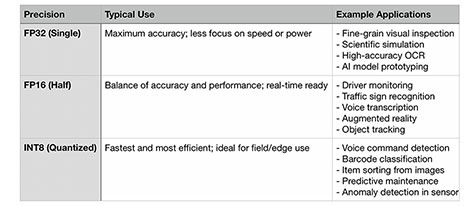

This requires a brief intro to AI processing. In essence, computing is about speed and precision. There are complex computing tasks that require exact results, and there are computing tasks that quickly require approximate results. FP32 — "32-bit floating point" — processing yields the highest precision, and that is that is the standard for CPUs. But there is also FP16 — "16-bit floating point" — processing that's faster on GPUs or NPUs that support it, but not as precise. Finally, there are simple, super-quick lower-precision formats, such as INT8, that are ideal for running on NPU neural processors. The table above shows what kinds of tasks and applications are best for each processing precision. Note the INT8 "AI tasks" — that's the kind of work an "AI-PC" or "AI-enhanced" system can quickly and efficiently do in the background.

This is where AI benchmarking becomes essential. The new Geekbench AI benchmark suite evaluates how efficiently a system performs AI-related computations, breaking down results by precision levels — 32-bit, 16-bit, and 8-bit — and by processing unit: CPU, GPU, and, if available, NPU (Neural Processing Unit).

This approach differs significantly from traditional benchmarks, which focus on CPU, RAM, storage, and graphics performance. Geekbench AI measures performance in IPS — Inferences Per Second — which represents how many predictions a system can generate per second using a specific AI model and framework. Frameworks, in this context, serve as translators between the software algorithms and the underlying hardware, enabling efficient execution of AI workloads.

RuggON VORTEX AI performance (Geekbench AI)

	Framework	Hardware	Single (32bit)	Half (16bit)	Quantized (8bit)
	ONNX	CPU	1,581	651	2,516
	ONNX	DirectML	2,288	2,337	1,464
	OpenVINO	CPU	1,745	1,727	3,501
	OpenVINO	GPU	3,036	4,305	6,573
	OpenVINO	NPU	NA	NA	NA

The table to the right shows the Geekbench AI Inferences Per Second (IPS) results for the VORTEX. ONNX (Open Neural Network Exchange) is an open-source format for machine learning models, developed primarily by Microsoft. OpenVINO (Open Visual Inference and Neural Network Optimization) is Intel's toolkit designed to optimize AI performance on Intel hardware. In our experience, OpenVINO consistently extracts the most performance from Intel platforms.

DirectML, also from Microsoft, enables AI workloads to run on compatible GPUs — though it currently does not support NPUs.

As the results show, the OpenVINO/GPU combination delivers the highest inference performance across all precision levels. From our broader AI benchmarking, we've observed that when an NPU is available, GPUs tend to outperform in FP32 tasks, while NPUs typically offer significantly better performance in FP16 and INT8 workloads.

What do the benchmark results tell us? Essentially, they confirm that AI applications optimized for Intel's OpenVINO framework can run efficiently on the VORTEX using the GPU built into the Intel Core i5-1335UE processor. This enables real-time edge AI capabilities such as voice input, object recognition, blind spot detection, and predictive analytics — all highly relevant for improving safety and operational efficiency in demanding vehicle environments. Even 16-bit inference performance is strong, making the VORTEX suitable for tasks like vehicle performance monitoring, predictive maintenance, and fuel optimization.

But what if it is primarily AI processing power that's needed for a given application, one that would greatly benefit from boosted INT8 inference performance? There is such a solution: The Hailo-8 module, for example, can add 26 TOPS in a little PCIe module. That'd likely be almost as much as an Intel Core Ultra Series 2 can muster in terms of efficient mobile real-time/edge AI processing. As it turns out, RuggON actually does make the Hailo-8 available in the VORTEX. For customers who seek to create/install AI-type applications, the Hail-8 would likely make a substantial difference.

It's important to note, however, that for any AI application to deliver optimal results, it must be specifically developed for the intended combination of AI framework and target hardware. The synergy between software and platform is key to achieving reliable and efficient AI performance at the edge.

Communication and Satcom readiness

As a versatile vehicle-mount computer, the RuggON VORTEX is well-equipped to handle virtually any industrial or fleet computing task. With integrated Wi-Fi, mobile broadband, dedicated GNSS, and extensive support for external antennas, the system stays fully connected — both within vehicles and across wide-area IoT and cloud infrastructures. This makes the VORTEX a strong fit for a wide range of deployment scenarios. RuggON highlights not only use in trucks and buses, but also in forklifts, agricultural machinery such as harvesters and tractors, specialized mining vehicles, and more.

That said, even robust mobile broadband has limitations. In remote or rural regions, coverage may be spotty — or entirely unavailable. That's where satellite communication (SATCOM) becomes essential. RuggON previously integrated Iridium SATCOM into its PX501 rugged tablet, and company documentation confirms that SATCOM is also available for the VORTEX.

Specifically, the VORTEX can be equipped with Iridium connectivity via Short Burst Data (SBD) service. Iridium enables reliable communication when conventional networks are inaccessible, supporting SOS, text messaging, and basic voice services to maintain operational continuity. It's important to note, however, that Iridium is not intended for high-speed data and is best suited for low-bandwidth, mission-critical communication.

Ruggedness

A vehicle-mount computer's ruggedness characteristics are inherently different from those of a rugged mobile system. Vehicle-mounts aren't generally carried around and thus won't be dropped. So the drop spec that's so important in hand-carried mobile devices isn't an issue. Vehicle-mounts, on the other hand, are exposed to much more vibration and shock. And temperature resistance is important because, depending on the mounting location, it can get very hot or cold inside vehicle.

On the ruggedness and durability front, the VORTEX is built to handle harsh environments. It carries an IP65 rating (excluding the IO-B block), meaning it is fully dustproof and can withstand low-pressure water jets from any direction. The unit operates across a wide temperature range — from -22°F to 135°F — and has been tested to MIL-STD-810H standards for resistance to vibration, mechanical shock, and other environmental stressors.

In earlier generations of rugged computing equipment, rotating hard drives were a major point of failure due to their vulnerability to temperature extremes and mechanical impact, often resulting in head crashes. That issue is now obsolete. Solid-state storage has entirely replaced spinning disks in rugged systems, including in the VORTEX. These solid-state drives — essentially compact, durable memory modules — are far more resilient and reliable.

Regarding vibration resistance, RuggON certifies the VORTEX to MIL-STD-810H Method 514.8 procedures, including C2 (U.S. highway truck vibration), C4 (composite two-wheeled trailer vibration), and C6 (composite wheeled vibration). Additionally, the device complies with IEC 60721-3-5 Class 5M3, which covers mechanical stress levels typical in mobile and vehicular environments.

The images below show several of the test platforms used in RuggON's in-house ruggedness verification labs.

Since ruggedness testing results can be extensive, manufacturers usually only include highlights into their tech specs. We recommend to always request all available ruggedness testing results, especially as they pertain to planned deployment of a device.

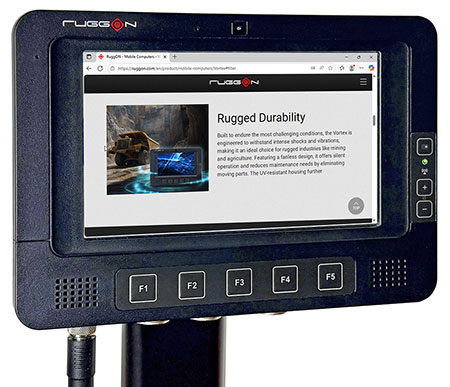

The RuggON VORTEX vehicle mount: bottom line

Overall, the VORTEX represents a major evolution of RuggON's original concept: a tough, rugged, yet highly compact Microsoft Windows-based vehicle-mount PC designed to fit into tight spaces. First introduced as the MT7000 several years ago, the platform has now been completely re-engineered, delivering significantly higher performance and transforming into a state-of-the-art solution with broad application potential — including support for a wide range of AI-assisted and AI-driven capabilities.

Designed to meet a wide range of vehicle application requirements, the RuggON VORTEX is powered by either a high-performance 13th-generation Intel "Raptor Lake" Core i5-1335UE processor or a cost-efficient Intel Atom x7211E. Both configurations benefit from a passive thermal design, eliminating the need for a mechanical cooling fan and reducing potential points of failure.

The 7-inch capacitive multi-touch display offers 1024 × 600 resolution, 500 nits of brightness, auto-dimming, and effective anti-reflective treatment. Five programmable physical buttons allow quick, one-touch access to commonly used functions.

Built for extreme conditions, the VORTEX features IP65 sealing for excellent dust protection and resistance to low-pressure water jets, making it suitable for wash-down environments. Its wide operating temperature range of -22 to 131°F supports deployment in virtually any climate.

Connectivity is a key strength of the VORTEX. It supports multiple modular I/O configurations via downward- or rear-facing — with options for standard, secure, or M12 screw-locking ports. Available I/O includes serial, LAN, USB, HDMI, digital I/O, CANBus, and SAE J1939, among others. Side-mounted ports include a reversible USB-C with DisplayPort support, a MicroSD card slot, and a Micro SIM slot.

Wireless communication is equally robust, with support for multiple WLAN, Bluetooth, and mobile broadband configurations. Extensive antenna pass-throughs are provided for reliable external connectivity. The system operates on wide-range vehicle power and includes a 7 watt-hour internal battery to protect against power fluctuations, enable graceful shutdowns, and provide emergency backup operation.

In summary, the RuggON VORTEX is a compact, highly adaptable Microsoft Windows-based vehicle-mount computer that bridges legacy and next-generation capabilities — including emerging AI-enhanced and edge AI applications — making it a powerful tool for modern fleet and industrial environments. -- Conrad H. Blickenstorfer, May 2025

Added/changed	Added 01/2025, full review 03/2025
Type	Rugged All-in-one vehicle mount computer
Processor	Intel Core i5-1335UE (2 performance cores, 8 efficiency cores) or Intel dual-core Atom x7211E
Processor clock speed	Intel Core i5-1335UE: performance cores 4.5 GHz max turbo frequency Intel Atom x7211E: 3.20 GHz max turbo frequency
Processor TDP	Intel Core i5-1335UE: 15/55 watts Intel Atom x7211E: 6 watts
Graphics	Intel Core i5-1335UE: Intel Iris Xe Graphics eligible Intel Atom x7211E: Intel UHD Graphics
OS	Windows 11 IoT Enterprise GAC / LTSC
Standard/Max RAM	Up to 16GB DDR5 SDRAM
Disk/drive	Up to 256GB M.2 2242 SSD and microSD card
Display type	LED-backlit TFT with auto-dimming, 500 nits
Display size/resolution	7.0 WSVGA (1024 x 600 pixels)
Digitizer	10-point projective capacitive multi-touch
Keyboard/keys	5 programmable buttons
Navigation	Touch, buttons
Expansion slots	1 x microSD, 2 x micro SIM, 2 x mPCIe, 1 x for GPS
Housing	ABS plastic, VESA MIS-C 75X35 mm
Size	8.7 x 6.0 x 2.0 inches (220 x 152 x 53 mm)
Weight	3.68 lbs (1.67kg)
Operating temperature	-22° to 131°F (-30° to 55°C)
Ingress protection	IP65 (except bottom-side I/O)
Humidity	5 to 95% non-condensing
Shock	MIL-STD-810H, Method 516.8, Procedure 1, functional shock
Vibration	MIL-STD-810H Method 514.8 Category 4 and IEC 60721-3-5 class 5M3
Salt Fog	Unknown
Power	9~60V VDC, Internal battery for graceful shutdown, ignition sense, vehicle power protection (ISO7637-2)
Camera	None
Sensors	6-axis IMU sensors (accelerometer + gyroscope)
Certifications	CE, FCC, CB, E-mark
Communication	Wi-Fi 7 802.11be Bluetooth V5.4 GNSS (GPS / Galileo / GLONASS / Beidou / QZSS), dead-reckoning or RTK (opt.) Satellite (opt.) 5G / 4G LTE / HSPA+ (opt.) NFC by request
Interface	IO-A : Secure type connector: 1 x RS-232 w/ power 1 x Gigabit Ethernet IO-B : Generic connectors: 1 x RS232 w/ power 1 x RS232/422/485 1 x Gigabit Ethernet 1 x HDMI 2 x DI / 2 x DO 1 x CAN bus 1 x Dual CAN FD/ SAE J1939 (opt.) 2 x video input IO-C: M12 connectors 2 x RS232/RS485 2 x Gigabit Ethernet 3 x DI / 1 x DO 1 x CAN bus 1 x Dual CAN FD/ SAE J1939 (opt.)
Price	Inquire
Spec sheet	RuggON VORTEX brochure (PDF)
Web page	RuggON VORTEX web page
